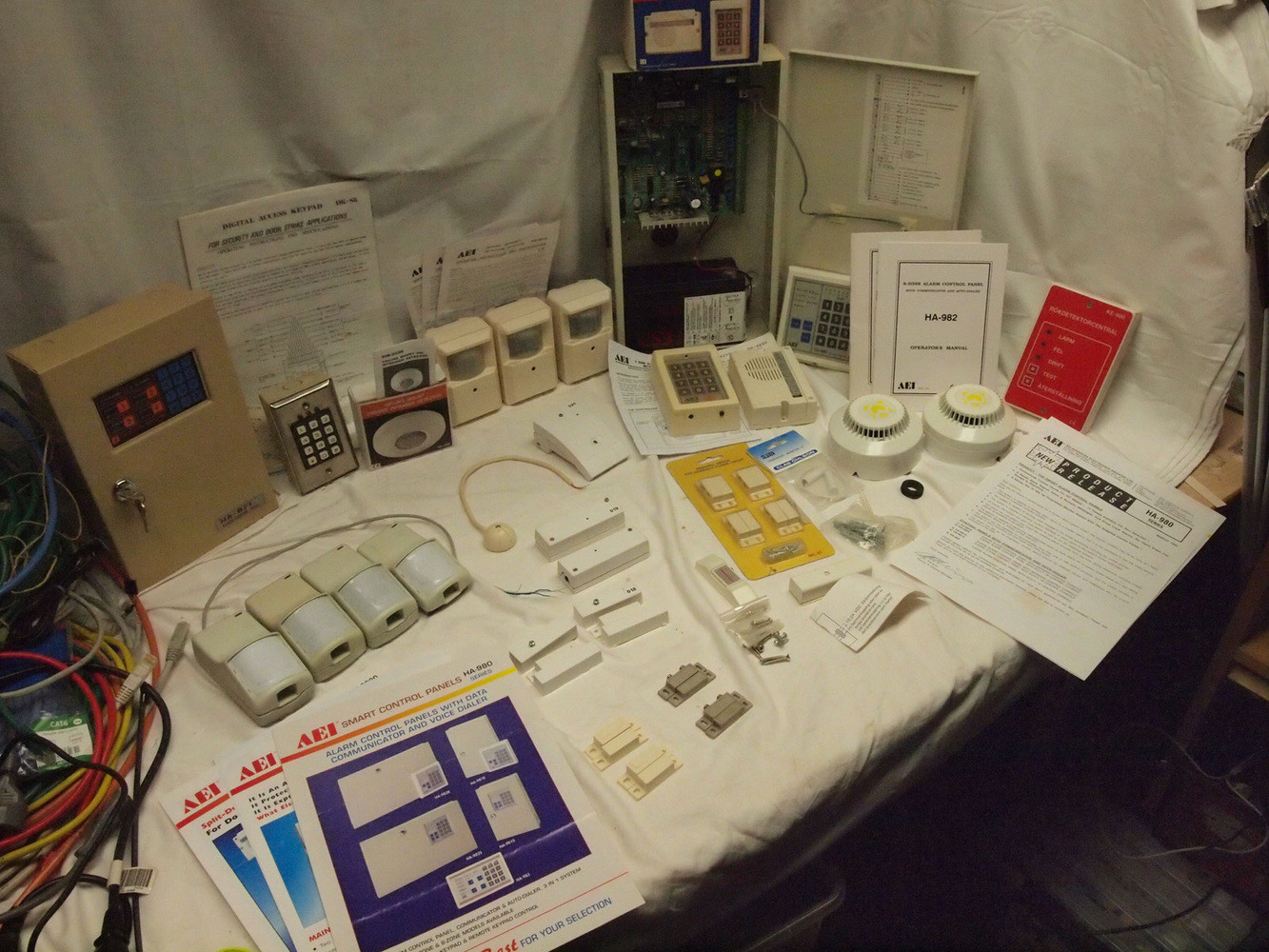

Trådbundna Larmartiklar

LARMCENTRALER

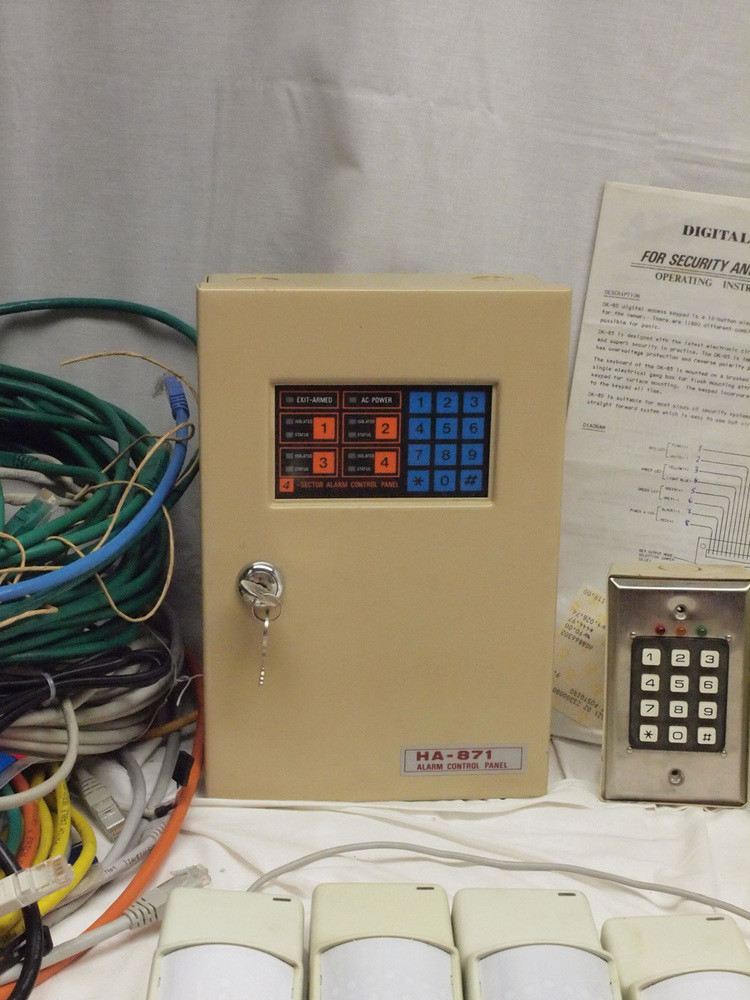

AEI HA-871 4-zoner. Komplett med backupbatteri(Otestat) och originalmanual.

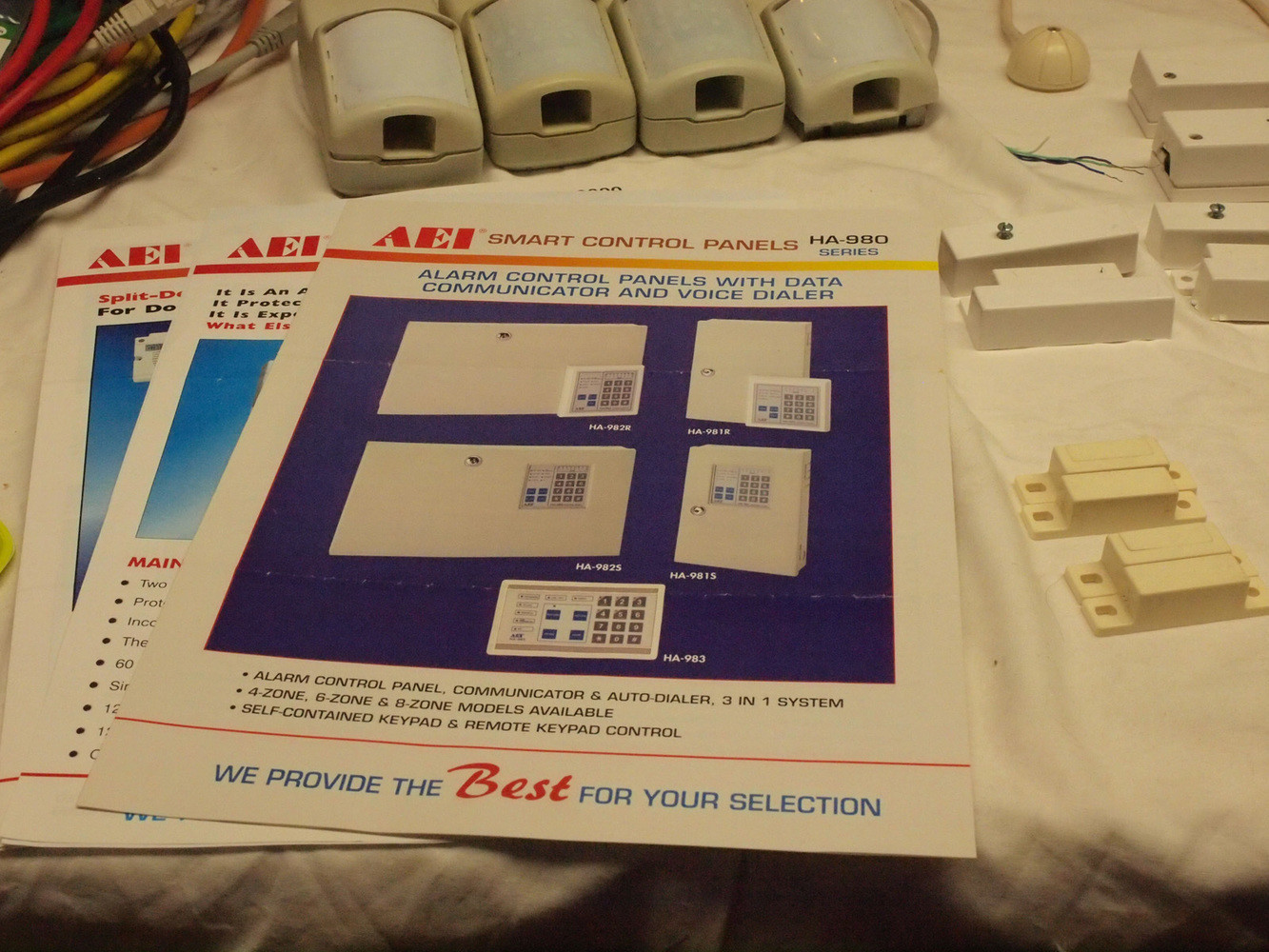

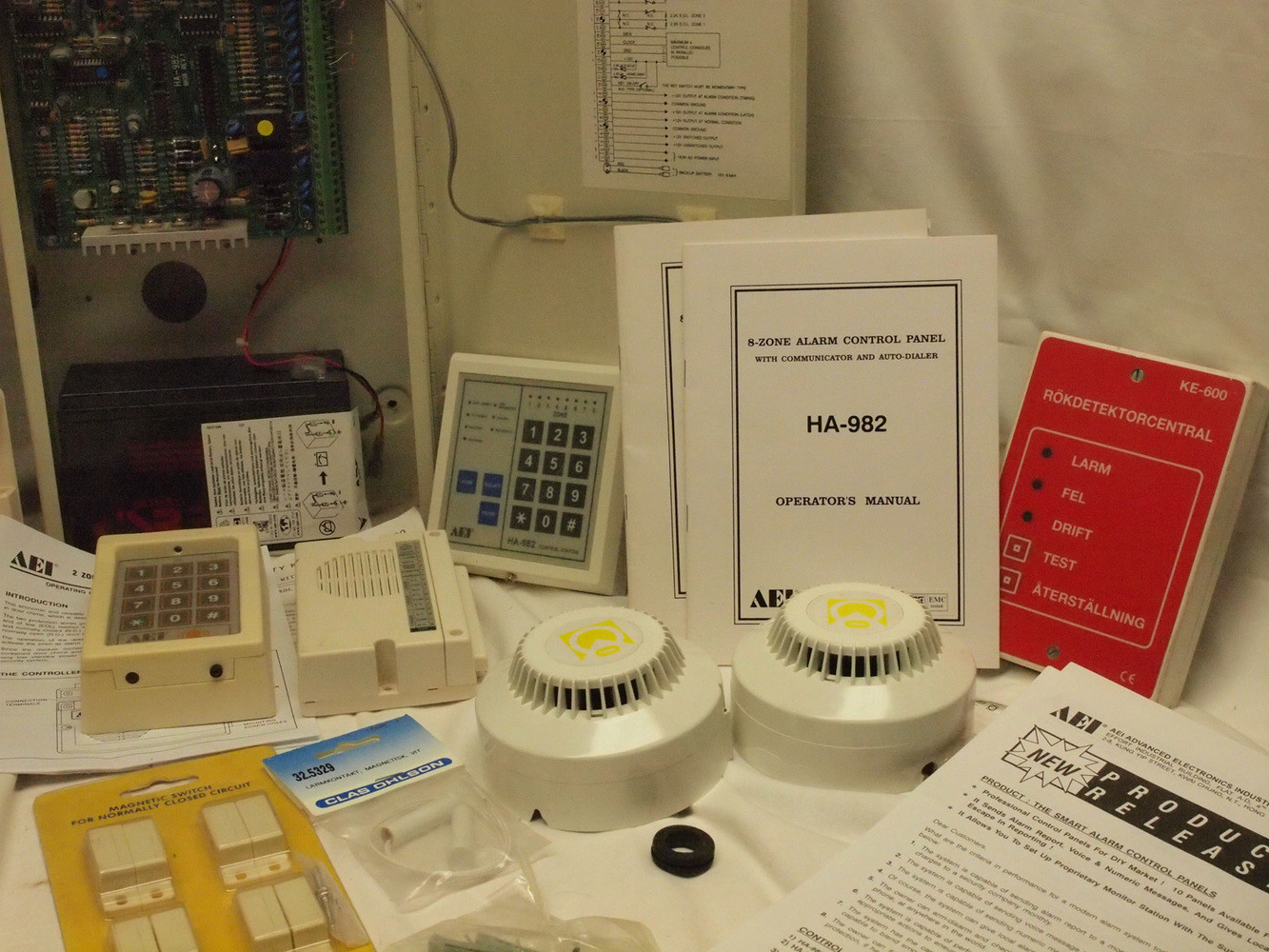

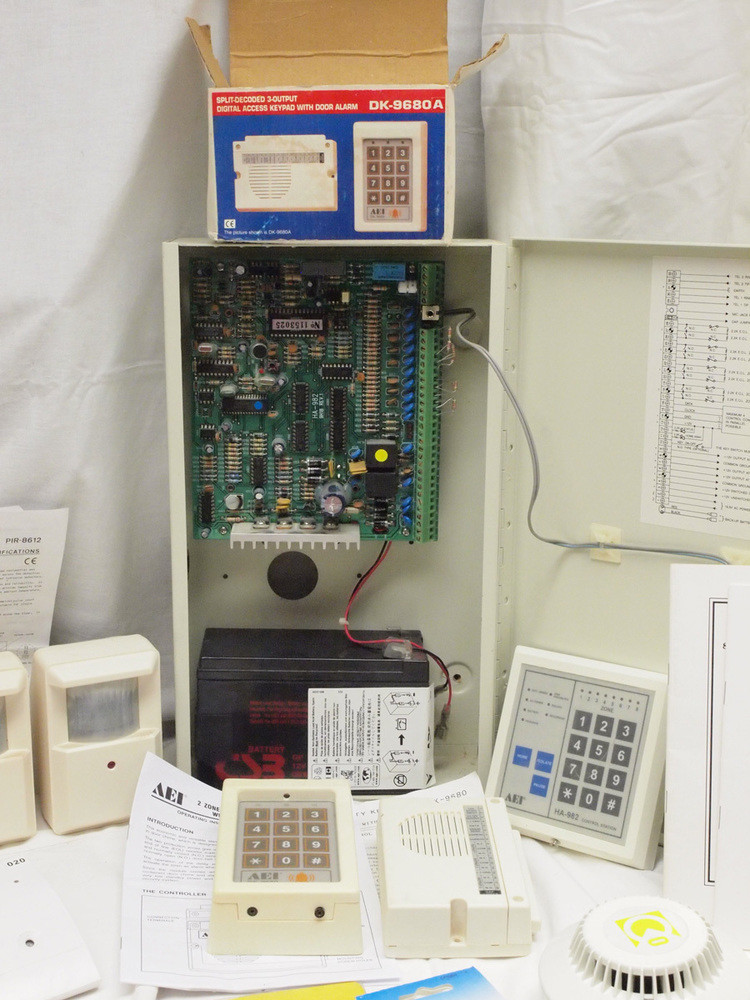

AEI HA-982 8-zoner. Extern manöverpanel. Komplett med backupbatteri(Otestat) och originalmanualer.
Rökdetektorcentral KE-600

SENSORER (*)=Utskrivet produktblad medföljer

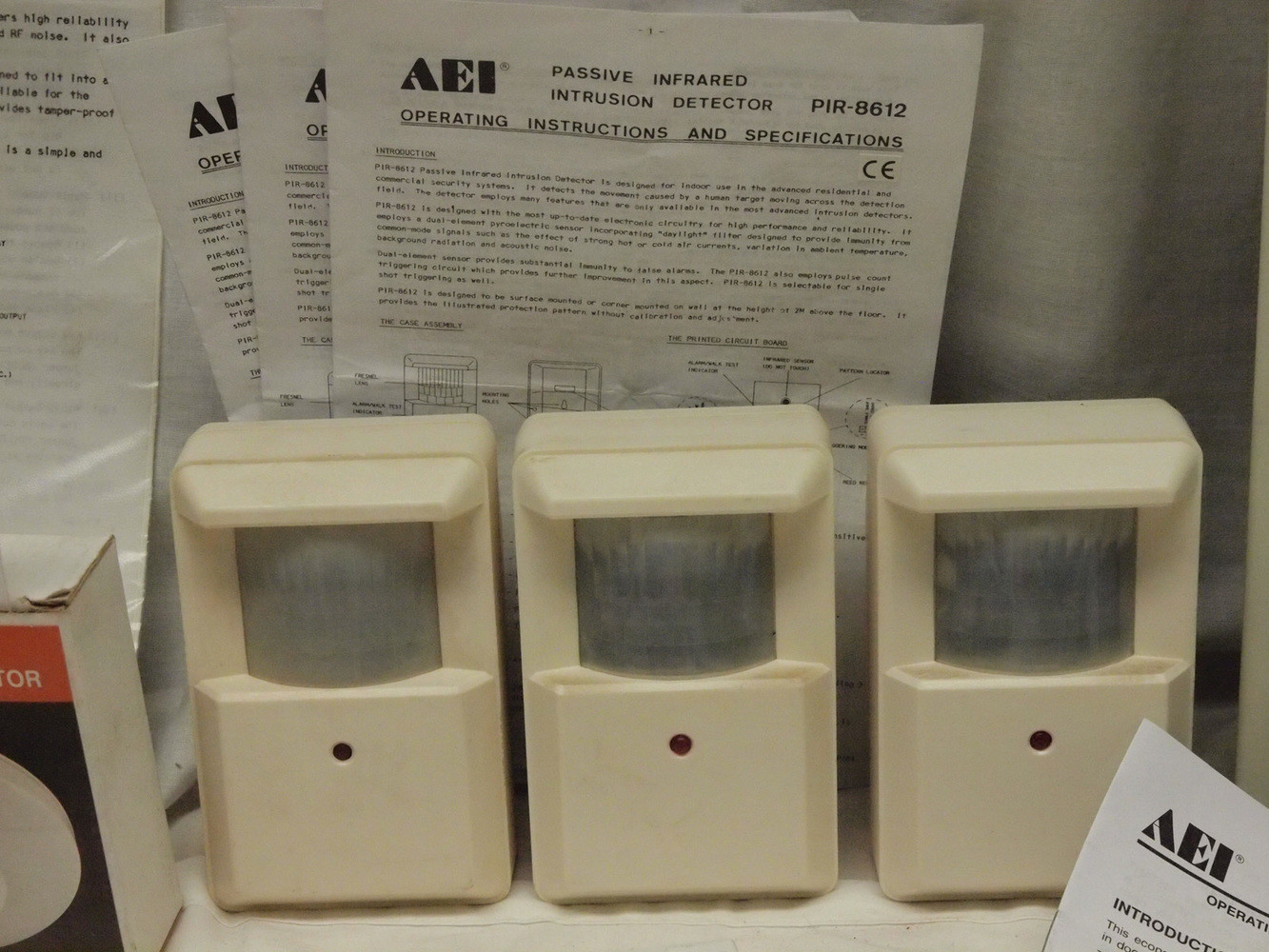

3st AEI PIR-8612 PIR detektorer
1st AEI PIR-9236 PIR detektorer
4st Arrowhead IR202-3 PIR detektorer
2st MK400 magnetkontakter ytmontage (*)
1st magnetkontakt infällt montage
8st magnetkontakter, 6 vita och 2st grå
1st Glaskrossdetektor AD700VdS (*)
1st panikknapp
2st Högkänsliga vibrationsdetektorer ES-400 (*)
1st glassensor, vibrationstyp

ÖVRIGT
2st AEI 9680-A Tangentbord, tvådelade. med manualer

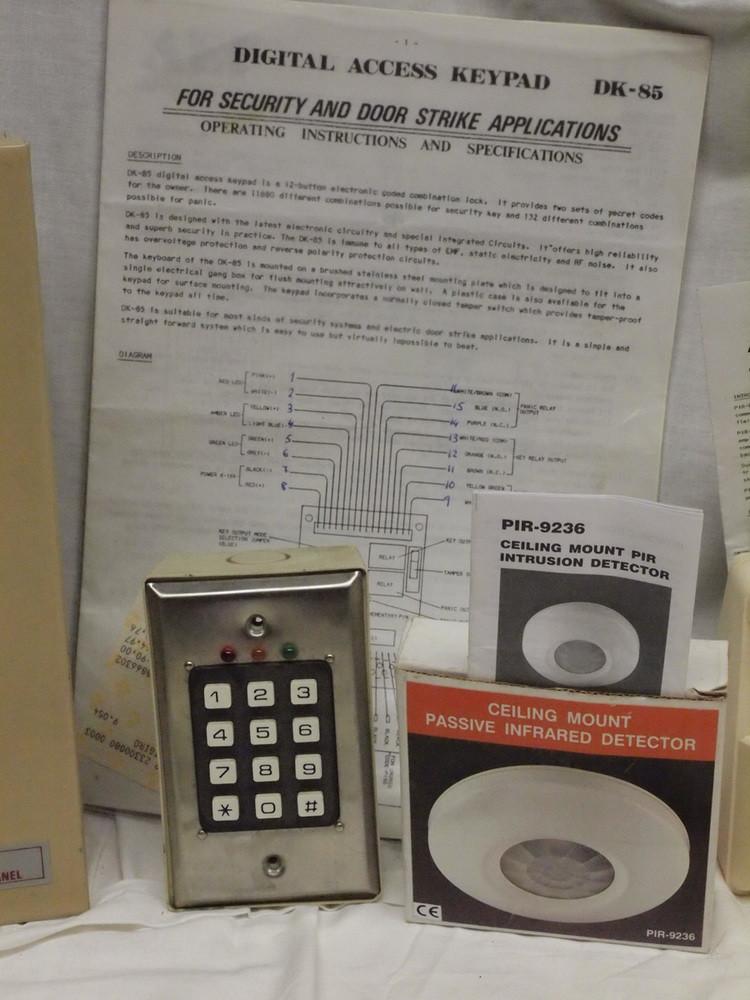

1st AEI DK-85 Tangentbord med manual
1st MK400 kopplingsdosa med tamperkontakt

DETALJERADE PRODUKTBESKRIVNINGAR

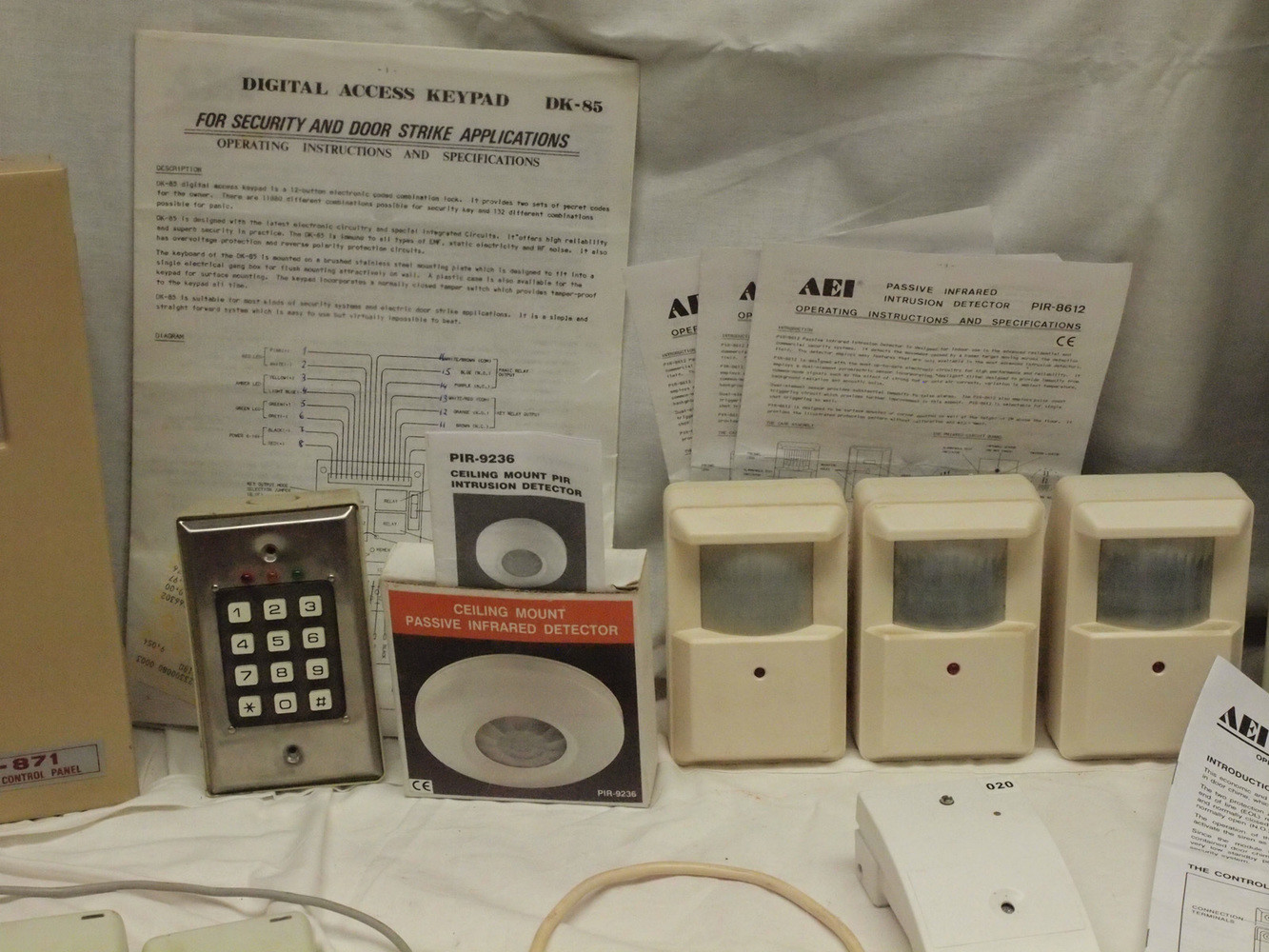

AEI PIR-9236 IR detektor för takmontering 360 graders täckning, oanvänd i originalkartong
PIR-9236 is a ceiling mount PIR motion detector designed to provide a low cost and reliable solution for general security system installation.

PIR-9236 employs dual-element pyro-electric sensor designed with alternate polarity pulse count circuitry which is controlled by an ASIC device.
The alternate polarity signal processor inside the ASIC has very high rejection to the common mode noise due to radio interference or power surges.
The ASIC device also provides the function of digital pulse counting, power-up delay and alarm output timing and controls.
All of which maximize security and delivers unrivalled false alarm immunity.
FEATURES & SPECIFICATIONS

Operating Voltage : 9-16VDC
Current Drain : 15mA at 12VDC
Walk Test LED Indicator
Alarm Output : N.C. Contact, 2-3 Seconds for Each Output
Power Up Delay : 2 Minutes with Flashing LED
Pulse Count : 1 or 2 Alternate Polarity Pulses in 12 Seconds
Detection Pattern : 11 Metres Diameter Cone Shape, 3.6 Metres from Ceiling


SIEMENS Alarmcom ES 400
ES 400 vibrationsdetektorn har justerbar känslighet och kan monteras
på fönsterkarmar, dörrar, väggar, tak och golv för tidig detektering av
inbrottsförsök.
Räckvidd 1 ~ 3 m radie
Matningsspänning 8 ~ 15 VDC
Strömförbrukning 7 mA (11 mA vid larm)
Larmutgång NC / 35 VDC / 500 mA
Sabotageutgång NC / 25 VDC / 100 mA
Test, styrning LÅG < 3 V / HÖG > 6 V
Till/Frånslagsingång, styrning LÅG < 3 V / HÖG > 6 V
Känslighetsinställning Med potentiometer
Pulsräknare Valbart 1 ~ 4 pulser
Arbetstemperatur -20 ~ +50°C
Kapslingsklass (IEC529) IP31
Dimensioner (B x H x L) 31 x 92 x 23 mm
Vikt 0.045 kg

Kopplingsdosa MK 400 Magnetkontakt
Magnetic contacts of the MK400 Series are used in alarm signalling systems and access control systems for
monitoring doors, gates and windows against any unauthorized opening.

-Gold-plated switching contacts
with a coating of ruthenium
for extremely long service
life (more than 20 million operating
cycles)
-High long-term stability
-Connection via screw
terminals
-Maintenance-free and easy to install


Glaskross sensor AD700VdS G104512
AD 700 is an acoustic glass break detector giving an alarm when glass is smashed at intruder attempts through windows, doors and glazed walls. The detector is based on advanced microcontroller technol-
ogy and programmed to take a lot of relevant acoustic factors into account: the Digital Room Compensation (DRC). This makes the detector able to distinguish between a true glass break and other irrelevant sounds. The detector is for indoor use. The coverage distance is 1–9 m. The coverage angle is 165º,
which means that one detector can protect several windows in the same room. The detector can be mounted in the ceiling or on a wall with a free “line of sight” to the window being protected. AD 700 is certified according to EN 50131-2-7-1:2012, secu-
rity grade 2.

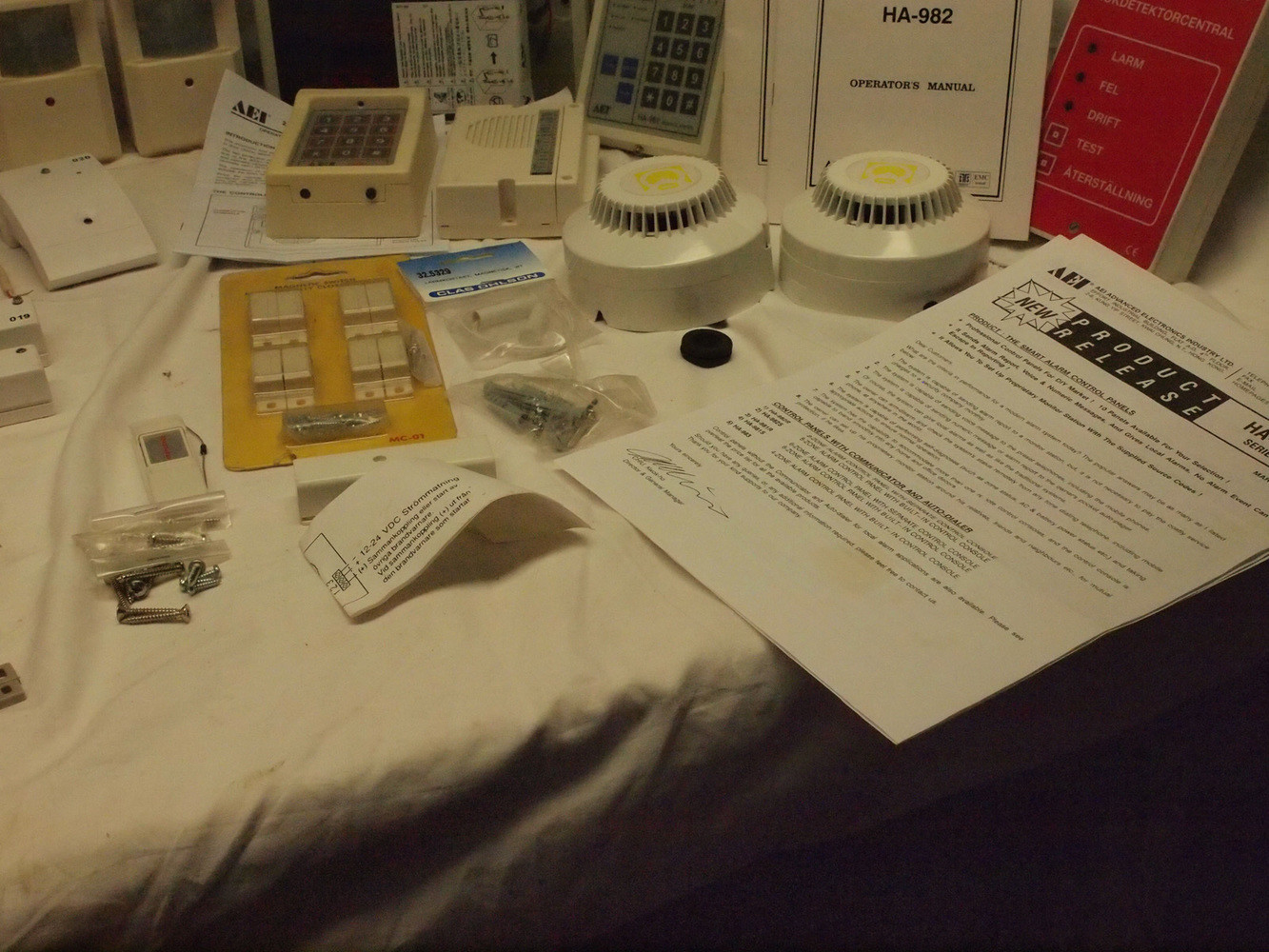

2st Optiska Rökdetektorer Optiska ST-P-DA STB-4SER330
The optical detector gives an early warning of a starting fire,
especially from fires producing big particles i.e. smoldering
fires.
The detecting chamber contains an emitter and a receiver.
Normallly the pulsed light-ray from the emitter does not
reach the receiver. When smoke particles enter the chamber
they will reflect the light-ray onto the receiver and alarm is
obtained. The alarm is indicated by a red LED on the detector,
and the alarm status continous until manual reset is made on
the control unit. In operating position, the emitter is pulsing
every 8 second to maintain a low monitoring current.
The detector design provides strong immunity to air velocities,
contamination and RF interference.
The detector module fits into the base by means of the bayonet
principle, enabling easy mountage of the detector.
If the detector is contaminated, it will gradually go into an
alarm position. In order to avoid nuisance alarms, the detector
is provided with a pre-alarm or service alarm (green LED)
showing that the detector module should be cleaned.
Detector module: White PC with metal net
around the chamber
Base: White PC
Operating voltage: 16-30VDC
Operating current: approx. 0,04mA
Service alarm current: approx. 13mA
Alarm current: approx. 48mA
Operating temperature: -20°C to +50°C
Max humidity: 99%rF
Tests according to EN-54: LPC (England)
Weight: ca 150g
Service alarm indication: Green LED
Fire alarm indication: Red LED

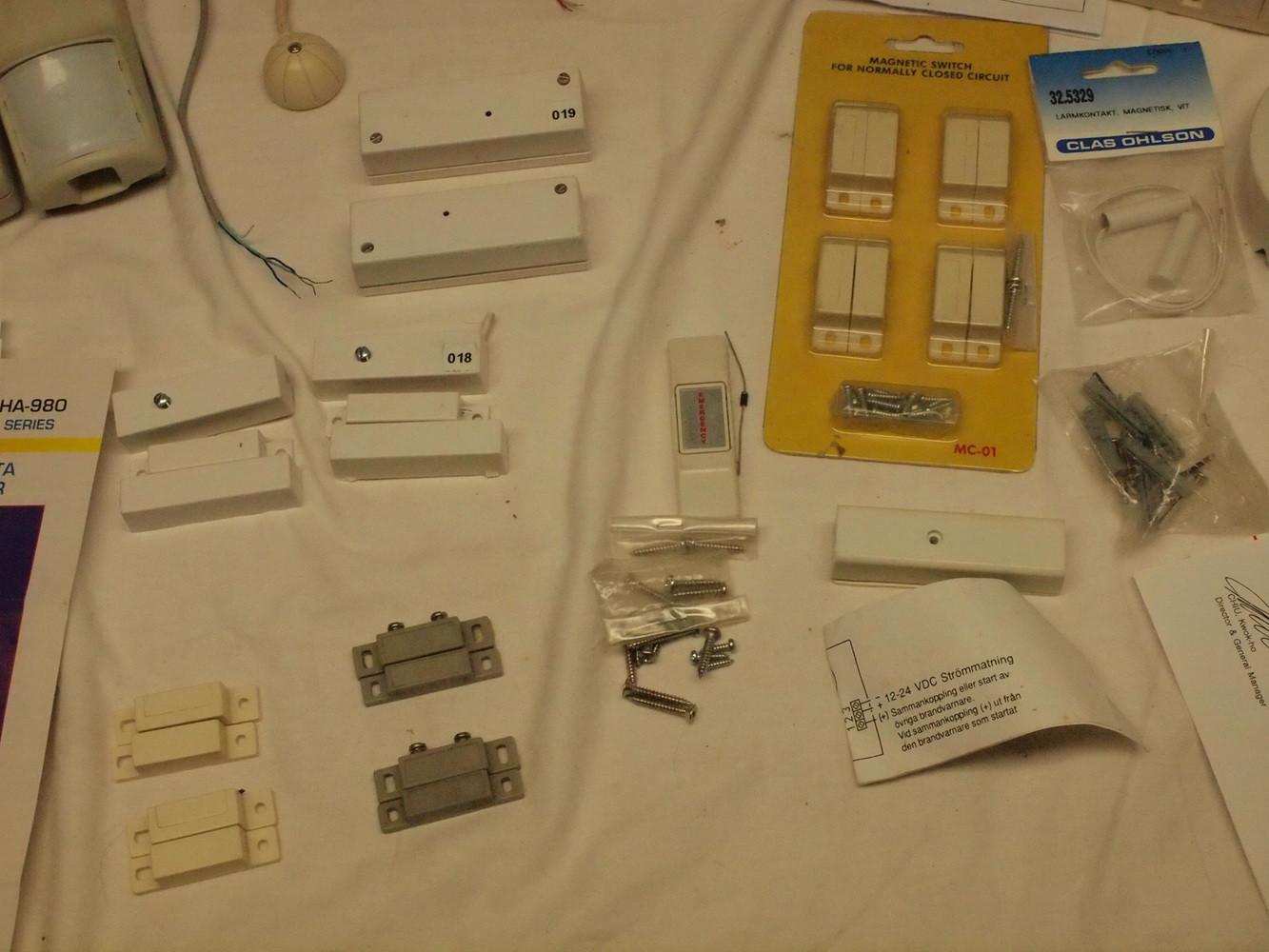

AEI MC-01 NC Magnetkontakter nya i förpackning
MC-01 – SURFACE MOUNTED MAGNETIC CONTACT (Top)

N.C. Circuit Contact at Normal Condition (door closed)
100mA, 35VDC Contact Rating
Wide Actuating Gap, 20 mm (3/4”)
Low Resistance Rhodium Contact
Color : Grey (Standard), White or Brown (on request)
Measurement: 13.3 X 13 X 51mm (Switch); 12 X 13 X 51mm (Magnet)

Rökdetektorcentral KE-600
Kontrollenhet KE-600 R5, är speciellt konstruerad för kontroll
av magnetupphängda dörrar.
Den innehåller styrenhet för manövrering av branddörrar
samt transformator och likriktare och anslutes direkt till nätet
230VAC.
Branddörrstängningssystemet består av kontrollenhet KE-
600 R5, rökdetektorer, dörrmagneter och eventuella klockor/
sirener. En eller flera rökdetektorer ansluts till KE-600 R5 i
en sektion.
I den sista detektorn inkopplas ett slutmotstånd, 2,2 kohm.
När rök når någon av detektorerna tänds larmlampan på
kontrollenheten, strömmen bryts till magneterna och branddörrarna
stängs. I larmläge faller magnetdörr 1 omgående
och magnetdörr 2 med 2 sek. fördröjning och eventuellt
anslutna klockor ljuder. Magnetdörr 1 och magnetdörr 2 får
pluspotential över brygga S3. Genom att flytta en bygel kan
man få kontakterna potentialfria.
KE-600 R5 har anslutningar för nät, rökdetektorer, klockor,
magneter och ev. larmfunktioner samt innehåller styrenhet,
transformator och likriktare. I kåpans front finns lampor för drift,
fel och larm samt en knapp för återställning och en för test.
Klock- eller sirenfunktionen är övervakad och skall avslutas
med ett 2,2 kohms motstånd.
Nödströmförsörjning SS-624 kan anslutas till kontrollenhet
KE-600 R5 på plintarna 12 och 13 om så önskas.

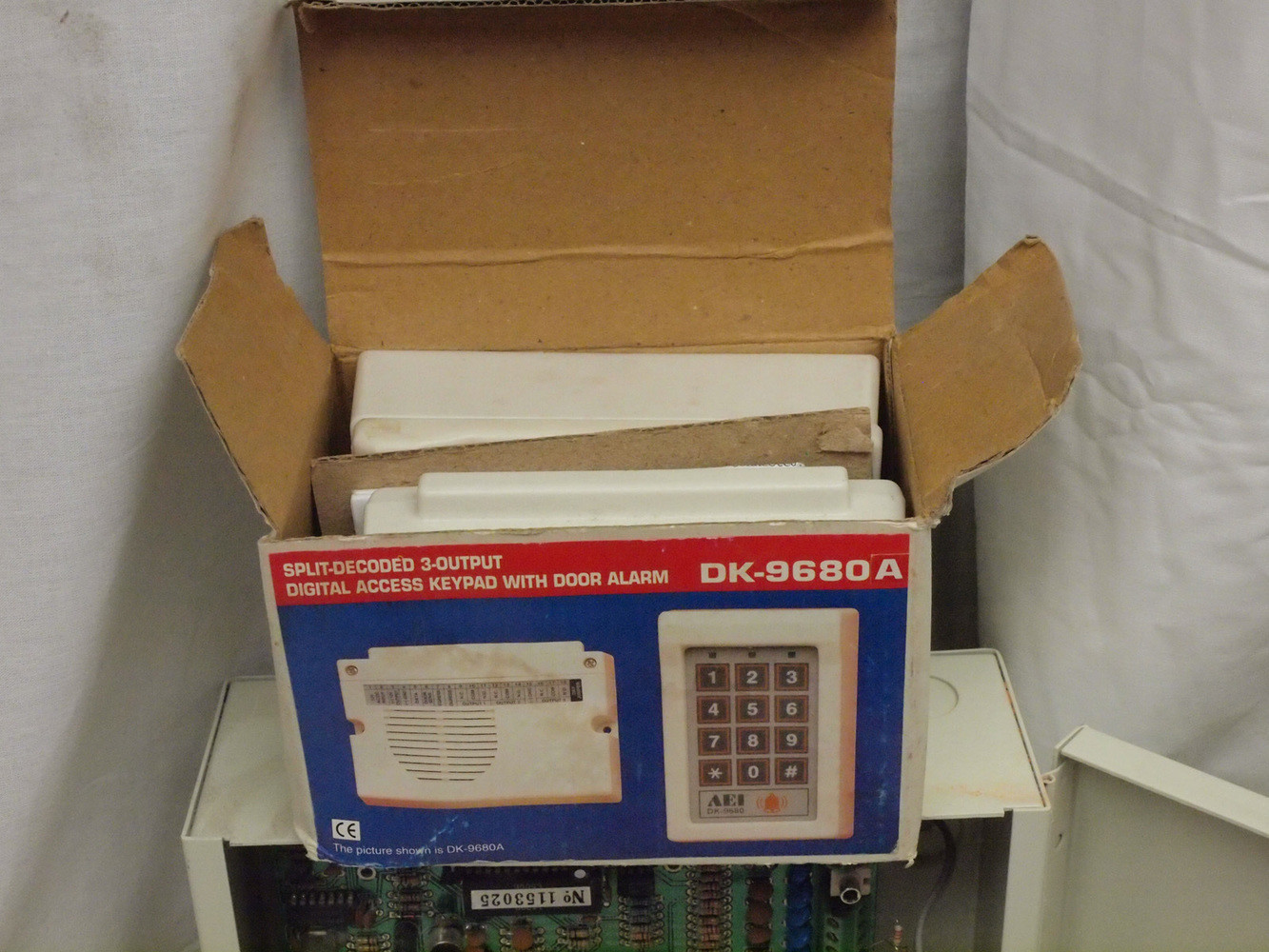

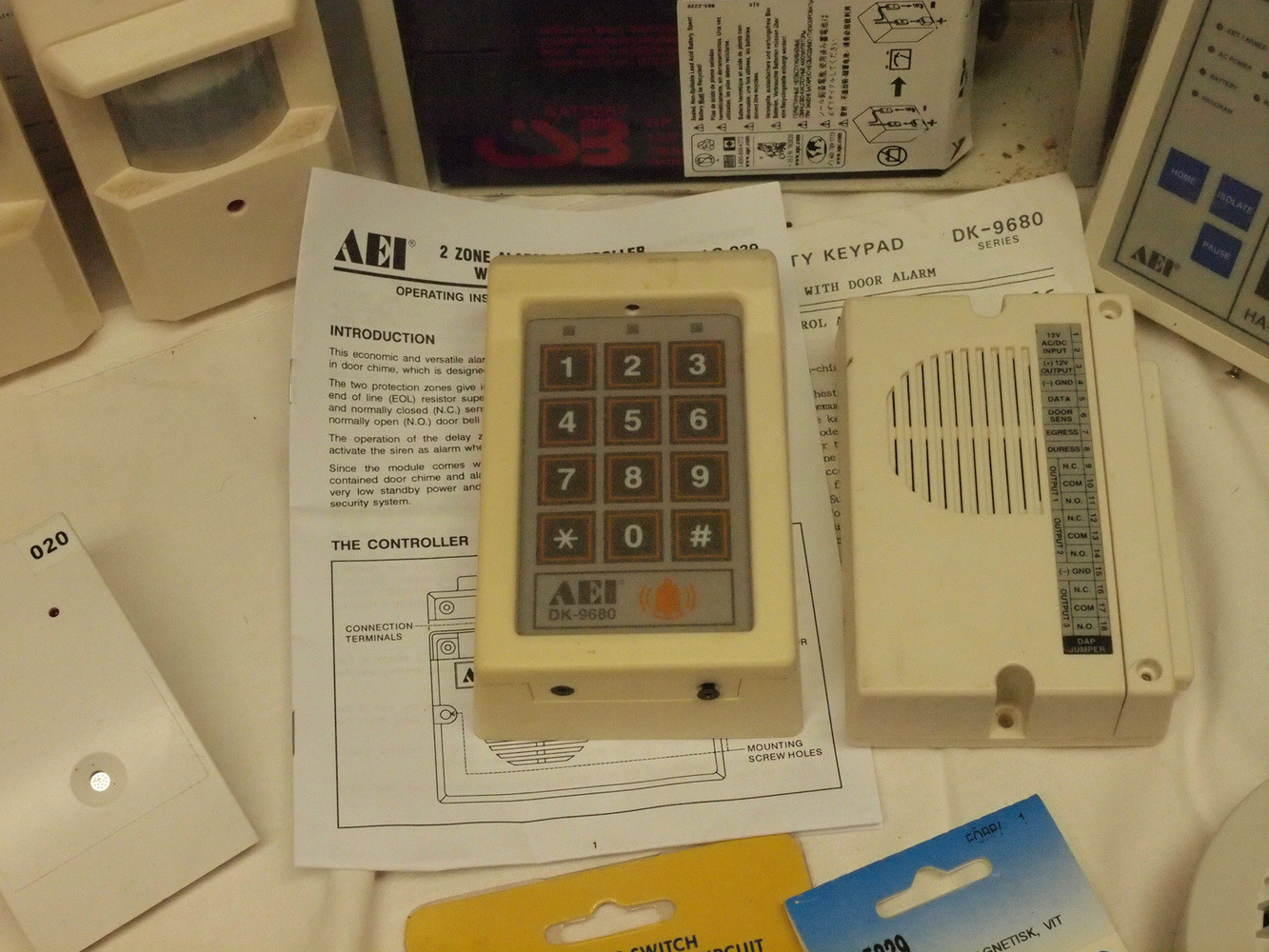

AEI DK-9680A Split decoded access keypad
DK-9680 / DK-9880 is the combination of access control keypad, door alarm and door chime in one system. It is
an ideal system for office and home security installations.
The system is adopting "Split Decoded" design philosophy to give highest security. Each DK-9680 / DK-9880 is split
into two parts, the remote keypad unit and the master decoder unit, they communicate with each other in digital
data. Anyone who tries to cut or short the connection wires at the remote keypad can not compromise the security of
the system or bypass the keypad function. The DK-9680 / DK-9880 uses current mode data bus communication, one
master unit can accommodate up to 3 remote keypad units connected in parallel for totally independent operation.
DK-9680 / DK-9880 employs 3 User Codes (code 1, code 2, and code 3) and one Super User Code for operating of
the 3 outputs which are designed for door strike and other security and access control applications. With its
EEPROM memory, the system's programmed data is nonvolatile in case of power failure. Over 100 million
combinations are possible for the 3 User Codes, the Master Code (it also acts as the Super User Code) and the
Duress Code. Other security features include duress output and door sensing for door forced open alarm, door opentoo-
long alarm and door auto re-lock functions. Facility for connecting an egress button for easy exit is also
incorporated. The plastic case of the weatherproof keypad unit (DK-9680) is precisely engineered, in which, the front
panel and the mounting box is sealed with a water resistant gasket making the keypad unit suitable for both in-door
and out-door installations

Clas Ohlson 32.5329 Magnetkontakter infällt montage
MC-02 – CONCEALED MOUNTING MAGNETIC CONTACT (Middle)

N.C. Circuit Contact at Normal Condition (door closed)
100mA, 35VDC Contact Rating
Wide Actuating Gap, 18mm (Make), 21mm (Break)
Low Resistance Rhodium Contact
Mounting Hole : 9.5mm Diameter
Body Height : 25mm
Lead Length : 60cm
Color : White (Standard)

Panikkontakt
PB-01 – EMERGENCY BUTTON

PB-01 – “EMERGENCY” Sign
N.C. & N.O. Circuit Contacts
Momentary Contact
Contact Rating : 500mA 24V DC
Measurement : 22.5(L) X 9(W) X 76(H)mm
Color : White

AEI magnetkontakter vita
MC-01 – SURFACE MOUNTED MAGNETIC CONTACT (Top)

N.C. Circuit Contact at Normal Condition (door closed)
100mA, 35VDC Contact Rating
Wide Actuating Gap, 20 mm (3/4”)
Low Resistance Rhodium Contact
Color : Grey (Standard), White or Brown (on request)
Measurement: 13.3 X 13 X 51mm (Switch); 12 X 13 X 51mm (Magnet)

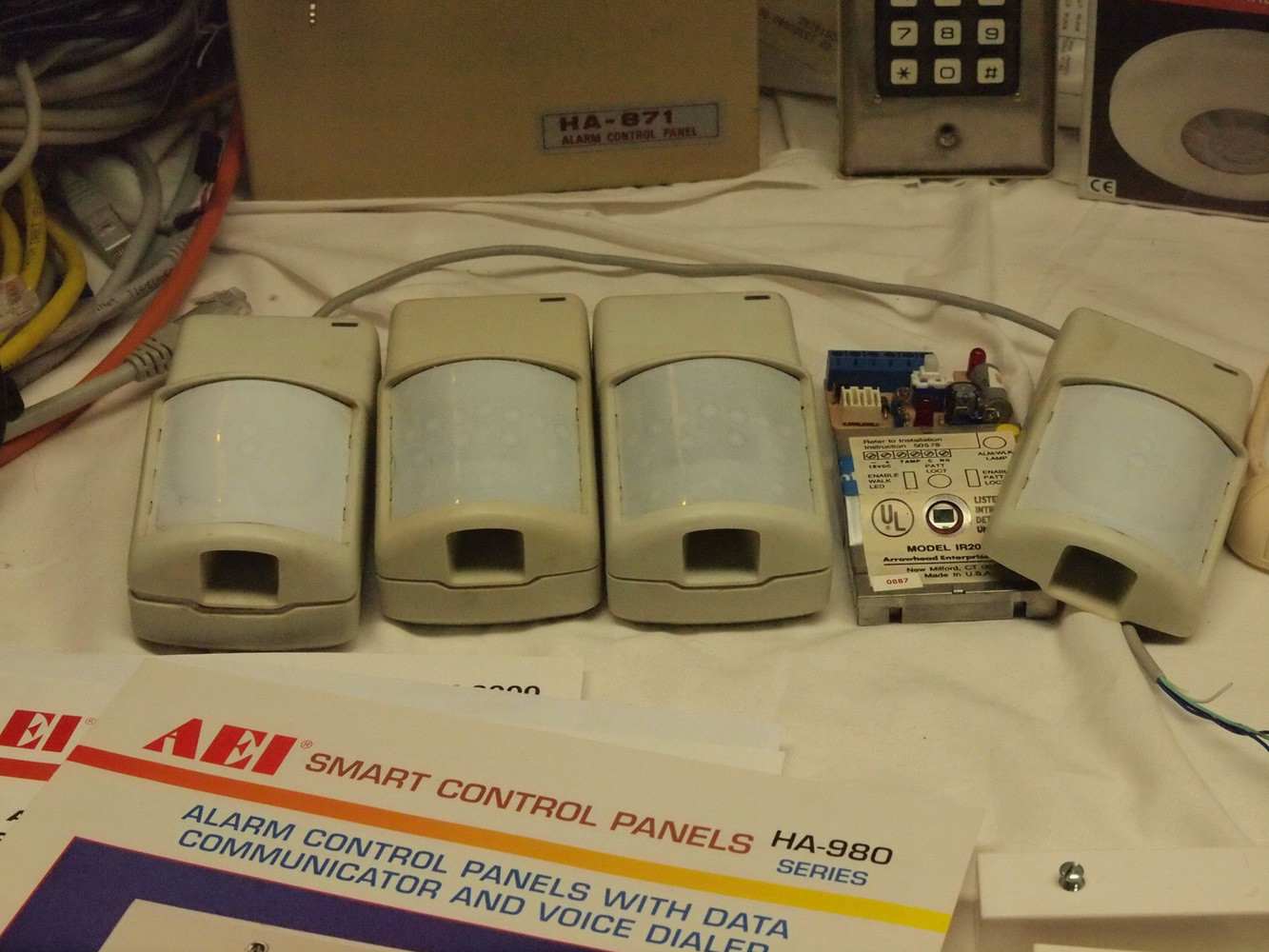

Arrowhead IR202-3 PIR detektorer. 3 kompletta, 1 saknar bakstycke.
USA-tillverkade med förbättrad och patenterat IR-lins för zonindelning.
[United States Patent 4275303] US6211522B1
